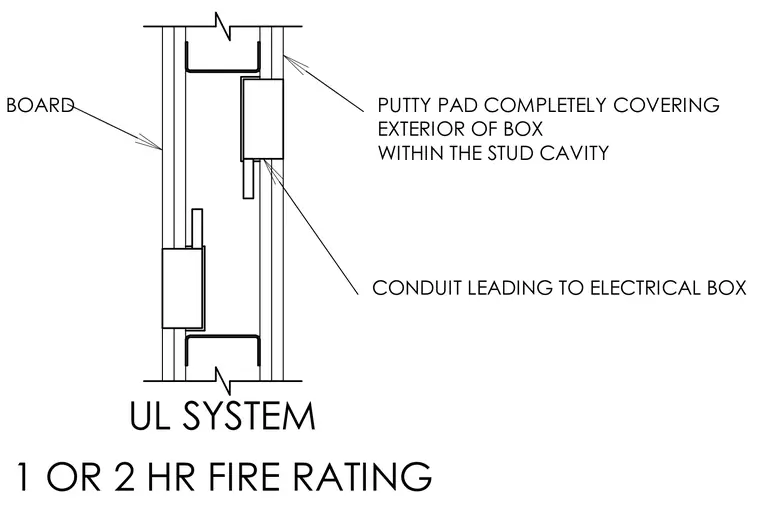

An electrical box is installed within the stud cavity of a one or two-hour fire-rated gypsum wall board partition. A conduit leads to the electrical box from above or below. A putty pad completely covers the exterior of the box within the stud cavity to maintain the required fire rating.
1 OR 2 HR FIRE RATING UL SYSTEM CONDUIT LEADING TO ELECTRICAL BOX PUTTY PAD COMPLETELY COVERING EXTERIOR OF BOX WITHIN THE STUD CAVITY GYPSUM WALL BOARD
