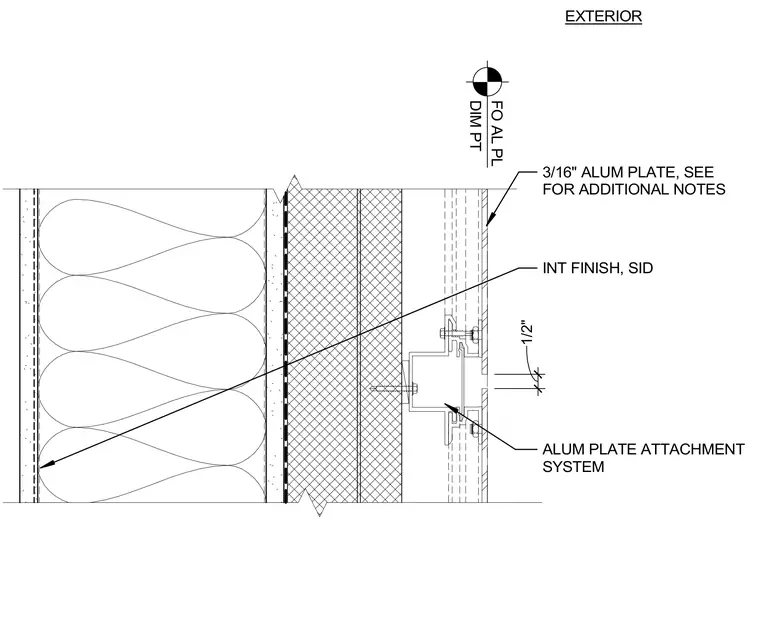

A three-sixteenth-inch exterior aluminum plate panel connects to the backing structure via an aluminum plate attachment system featuring mechanical fasteners and a half-inch horizontal joint. The interior finish consists of a standard interior finish layer over framing.
EXTERIOR INT FINISH, SID FO AL PL DIM PT 3/16" ALUM PLATE, SEE FOR ADDITIONAL NOTES ALUM PLATE ATTACHMENT SYSTEM 1/2"
