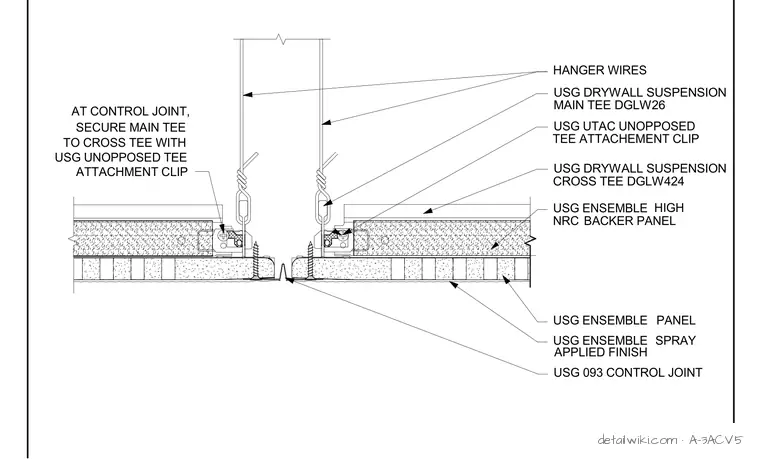

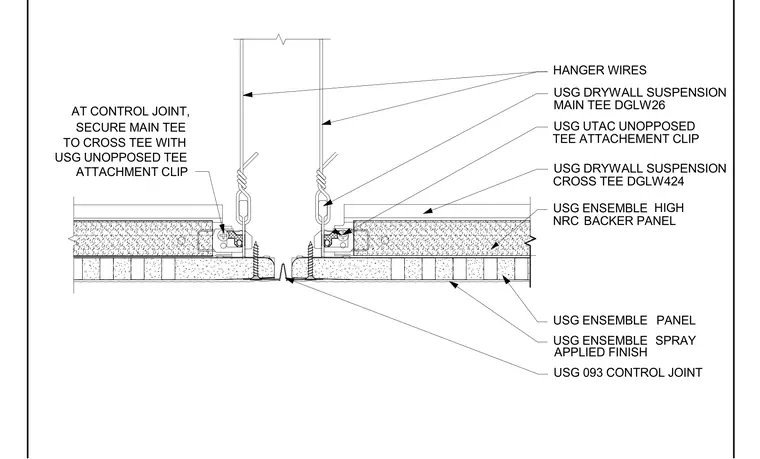

The ceiling assembly utilizes USG DGLW26 main tees and DGLW424 cross tees suspended by hanger wires. USG Ensemble high noise reduction coefficient backer panels and finish panels are secured to the suspension grid. At the control joint, the main tee is secured to the cross tee using a USG UTAC unopposed tee attachment clip. A USG 093 control joint is integrated into the ceiling plane to accommodate movement, with the Ensemble spray-applied finish covering the panel surfaces.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
