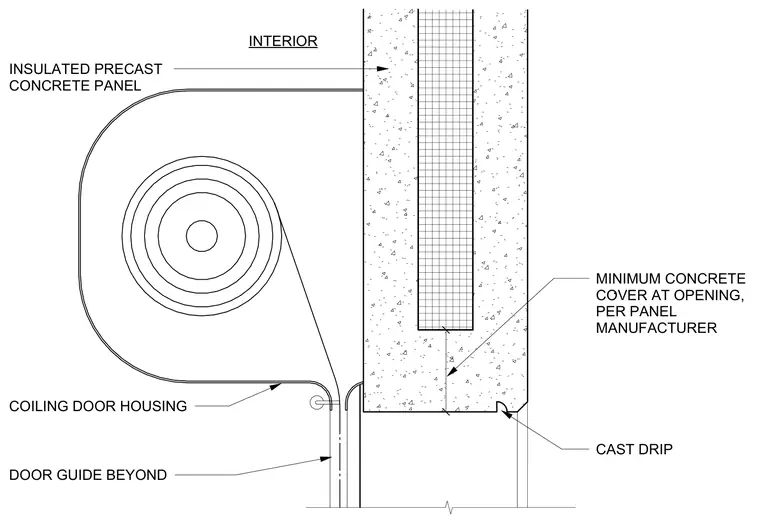

An insulated precast concrete panel supports a coiling door housing enclosure on the interior side. The concrete wall features a cast drip near the opening edge, with a specified minimum concrete cover per the panel manufacturer. A door guide extends beyond the housing assembly.
INSULATED PRECAST CONCRETE PANEL COILING DOOR HOUSING DOOR GUIDE BEYOND CAST DRIP INTERIOR . MINIMUM CONCRETE COVER AT OPENING, PER PANEL MANUFACTURER
