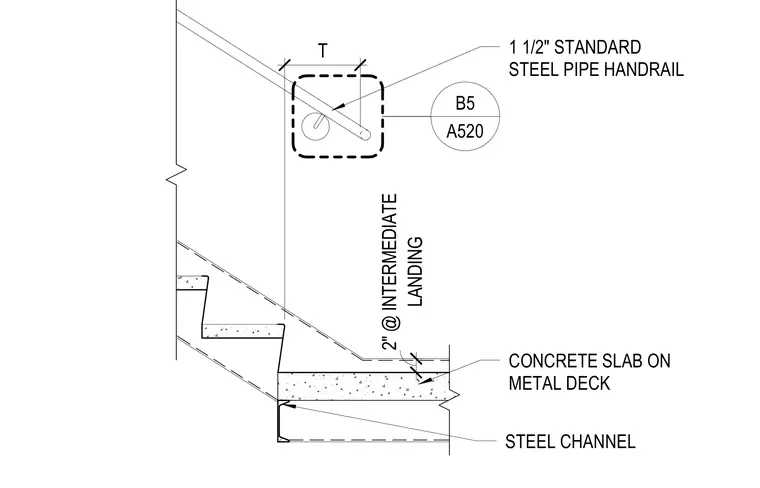

A one-and-a-half-inch standard steel pipe handrail mounts to an intermediate landing above a concrete slab on metal deck. The concrete slab is supported by a structural steel channel framing the stair assembly.
LANDING 2" @ INTERMEDIATE 1 1/2" STANDARD STEEL PIPE HANDRAIL STEEL CHANNEL CONCRETE SLAB ON METAL DECK T A520 B5
