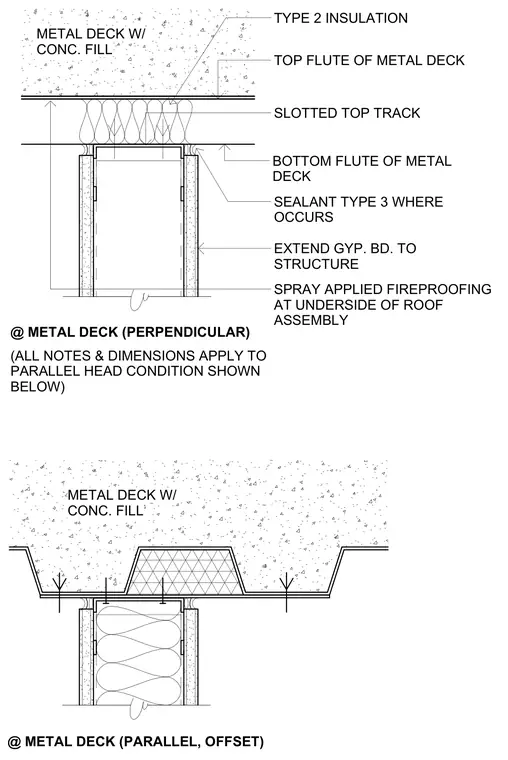

The metal deck roof assembly features a concrete fill over metal decking supported by structural framing, with spray-applied fireproofing at the underside of the roof assembly. A cold-formed metal stud partition wall terminates at the roof deck with a slotted top track. Gypsum board extends up to the structure on both sides of the wall. Type 3 sealant is applied where required at the junction between the top track and the metal deck flutes.
@ METAL DECK (PARALLEL, OFFSET) @ METAL DECK (PERPENDICULAR) (ALL NOTES & DIMENSIONS APPLY TO PARALLEL HEAD CONDITION SHOWN BELOW) EXTEND GYP. BD. TO STRUCTURE BOTTOM FLUTE OF METAL DECK TYPE 2 INSULATION METAL DECK W/ CONC. FILL TOP FLUTE OF METAL DECK SLOTTED TOP TRACK SEALANT TYPE 3 WHERE OCCURS METAL DECK W/ CONC. FILL SPRAY APPLIED FIREPROOFING AT UNDERSIDE OF ROOF ASSEMBLY
