Architectural · A-39YCV

Stainless Steel Guardrail Post with Bolt-On Return

Materials

Steel Stainless Steel

Elements

Columns Beams Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

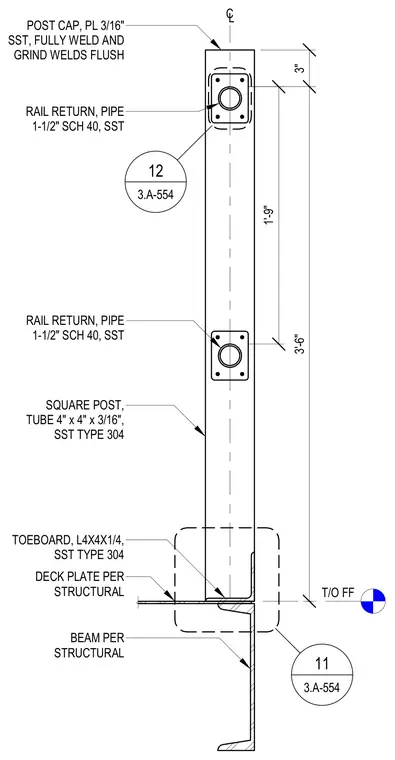

A 4" x 4" x 3/16" Type 304 stainless steel square structural post mounts to a deck plate per structural engineering and connects to a structural beam below finished floor level. Two 1-1/2" schedule 40 stainless steel pipe rail returns attach to the post with bolt-on flanges at specified heights. A 4" x 4" x 1/4" stainless steel angle toeboard sits at the base above the deck plate. The top of the post features a 3/16" stainless steel plate cap, fully welded with welds ground flush.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
