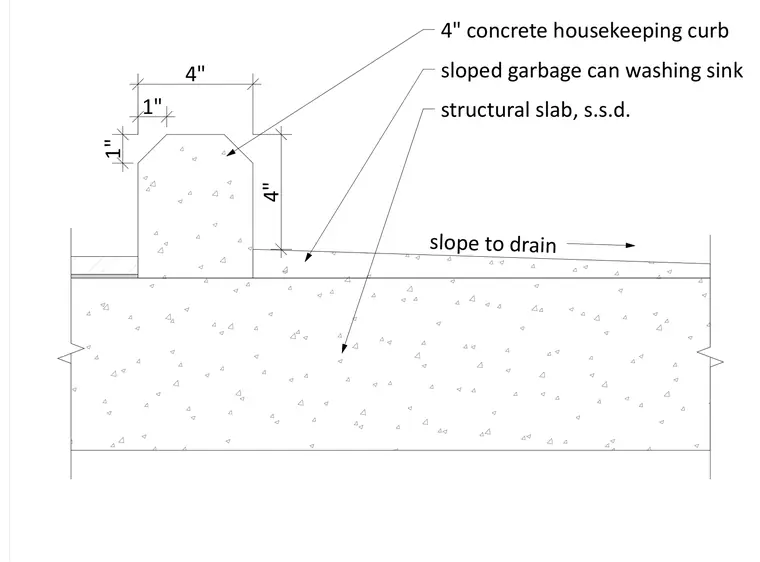

A four-inch concrete housekeeping curb forms the boundary for a sloped garbage can washing sink resting on a structural slab. The surrounding slab slopes toward the drain with a stainless steel drain connection. The concrete curb features a four-inch vertical profile with chamfered upper edges and one-inch offsets.
4" 4" 1" 1" sloped garbage can washing sink 4" concrete housekeeping curb structural slab, s.s.d. slope to drain
