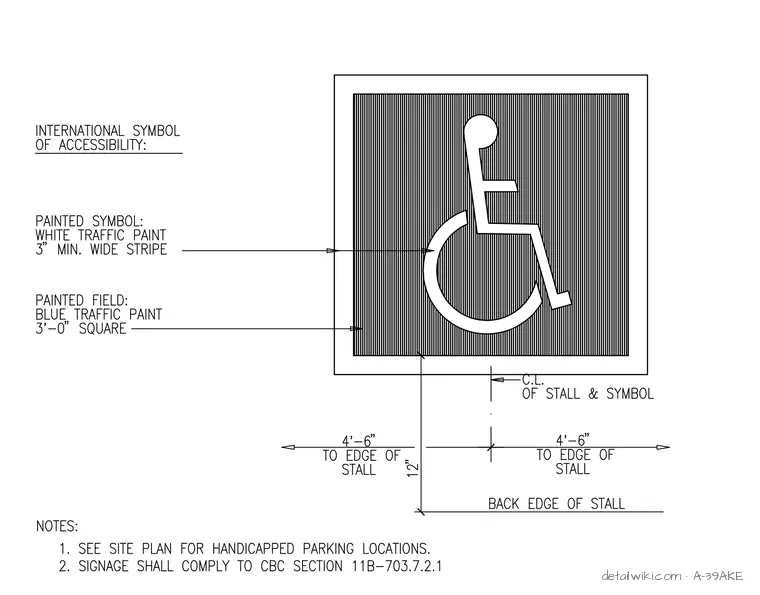

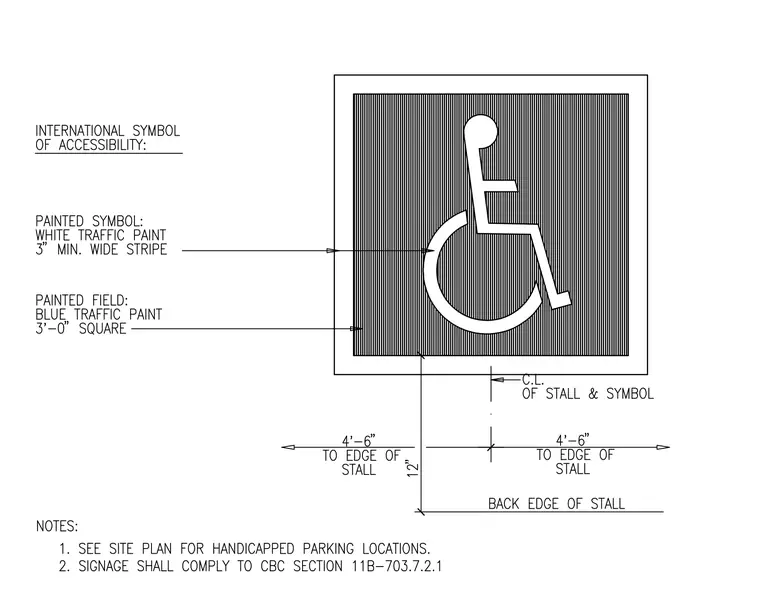

The International Symbol of Accessibility is centered within a three-foot square field of blue traffic paint. The symbol itself is rendered in white traffic paint using a minimum three-inch wide stripe. The symbol is positioned twelve inches from the back edge of the stall and centered on the stall's centerline. The stall layout requires four feet and six inches of clearance to the edge of the stall on both sides.
