A single-gang faceplate is mounted at the teachers station at eighteen inches above finished floor unless otherwise noted. The unit includes an HDMI connection routed to the media cabinet for a projector, and a second HDMI connection routed to the media cabinet for an interactive flat screen display.

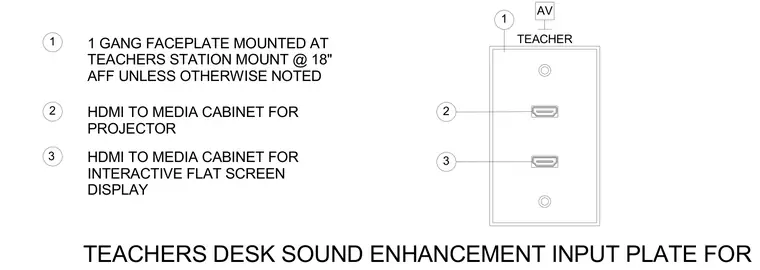

1 2 3 1 2 3 1 GANG FACEPLATE MOUNTED AT TEACHERS STATION MOUNT @ 18" AFF UNLESS OTHERWISE NOTED HDMI TO MEDIA CABINET FOR INTERACTIVE FLAT SCREEN DISPLAY HDMI TO MEDIA CABINET FOR PROJECTOR TEACHERS DESK SOUND ENHANCEMENT INPUT PLATE FOR TEACHER AV
