Architectural · A-392K2

Fire Extinguisher Cabinet

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

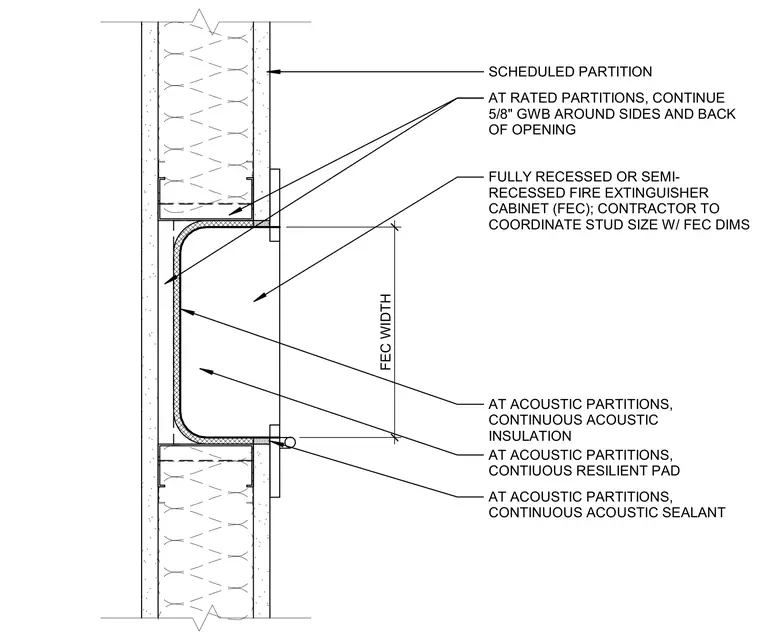

A fully recessed or semi-recessed fire extinguisher cabinet is installed within a scheduled partition, with the contractor coordinating stud size with cabinet dimensions. At rated partitions, five-eighths-inch gypsum wallboard continues around the sides and back of the opening. At acoustic partitions, continuous acoustic insulation fills the cavity alongside a continuous resilient pad and continuous acoustic sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
