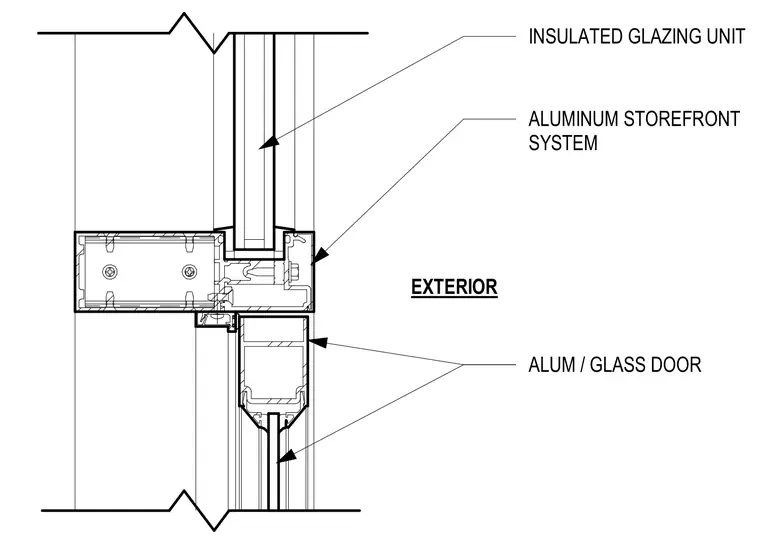

An aluminum storefront system mullion serves as the jamb for an aluminum and glass door. An insulated glazing unit is captured within the storefront frame via standard glazing gaskets. The aluminum and glass door profile aligns with the storefront mullion to transition between the fixed glazing and the operable door unit. Exterior orientation of the storefront and door components is indicated.
