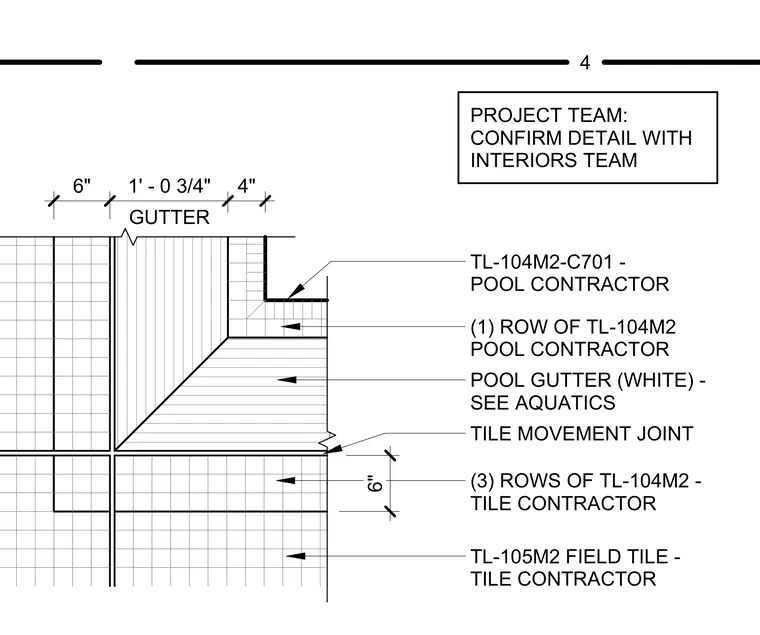

An indoor pool edge assembly features a white pool gutter coordinated with the aquatics contractor alongside field tile and accent tiles installed by the tile contractor. A tile movement joint is incorporated between the tile courses to accommodate thermal and structural movement. Three rows of tile type TL-104M2 border the gutter assembly, transitioning to TL-105M2 field tile. Project team coordination with the interiors team is required for final material selection and layout confirmation.
TL-104M2-C701 - POOL CONTRACTOR POOL GUTTER (WHITE) - SEE AQUATICS (3) ROWS OF TL-104M2 - TILE CONTRACTOR TL-105M2 FIELD TILE - TILE CONTRACTOR TILE MOVEMENT JOINT PROJECT TEAM: CONFIRM DETAIL WITH INTERIORS TEAM (1) ROW OF TL-104M2 POOL CONTRACTOR 6" GUTTER 1' - 0 3/4" 4" 6" 4
