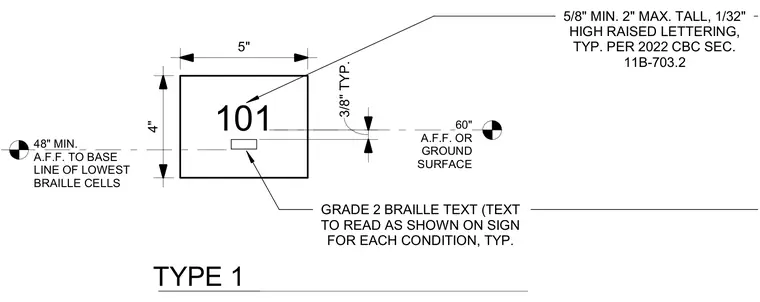

Room identification signage features raised lettering and Grade 2 Braille complying with 2022 California Building Code Section 11B-703.2. Raised characters measure between five-eighths and two inches high with a one-thirty-second inch high raised profile. The sign mounts with the base line of the lowest Braille cells positioned forty-eight inches minimum above the finished floor. The overall installation center line sits at sixty inches above the finished floor or ground surface grade. Sign panel dimensions measure five inches wide by four inches high with a three-eighths inch typical margin.
TYPE 1 101 3/8" TYP. 5" 4" 5/8" MIN. 2" MAX. TALL, 1/32" HIGH RAISED LETTERING, TYP. PER 2022 CBC SEC. 11B-703.2 48" MIN. A.F.F. TO BASE LINE OF LOWEST BRAILLE CELLS 60" A.F.F. OR GROUND SURFACE GRADE 2 BRAILLE TEXT (TEXT TO READ AS SHOWN ON SIGN FOR EACH CONDITION, TYP.
