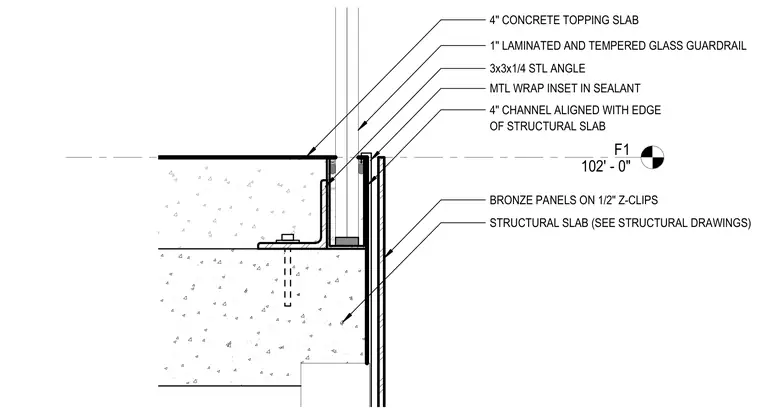

A one-inch laminated and tempered glass guardrail is seated in a recessed channel at the edge of a four-inch concrete topping slab and structural concrete slab. The glass guardrail base is anchored by a 3x3x1/4-inch steel angle and a four-inch channel aligned with the edge of the structural slab. Bronze panels are mounted on one-half-inch Z-clips along the exterior face of the assembly. A metal wrap inset in sealant finishes the edge condition adjacent to the guardrail.
F1 102' - 0" MTL WRAP INSET IN SEALANT 4" CHANNEL ALIGNED WITH EDGE OF STRUCTURAL SLAB BRONZE PANELS ON 1/2" Z-CLIPS 1" LAMINATED AND TEMPERED GLASS GUARDRAIL STRUCTURAL SLAB (SEE STRUCTURAL DRAWINGS) 4" CONCRETE TOPPING SLAB 3x3x1/4 STL ANGLE
