Architectural · A-38D6C

Storefront Head at Stucco

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Storefronts Waterproofing / Flashing Insulation

About this detail

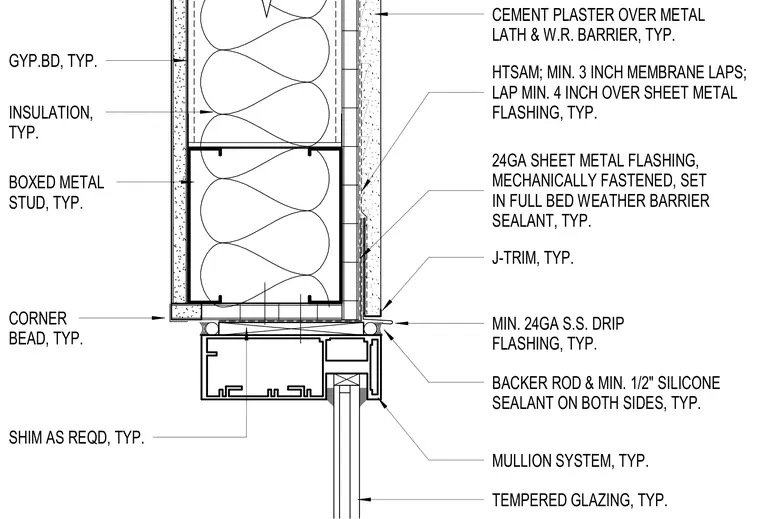

A boxed metal stud wall framed with interior gypsum board and cavity insulation terminates above a storefront glazing system head. The exterior receives a cement plaster finish over metal lath and a weather-resistant barrier, integrating with a high-temperature self-adhering membrane that laps over a mechanically fastened 24-gauge sheet metal flashing. A minimum 24-gauge stainless steel drip flashing with a J-trim is installed above the aluminum storefront mullion system, separated by shims as required. A backer rod and minimum 1/2-inch silicone sealant seal the joint between the storefront head and the adjacent stucco finish on both sides.
