Window Jamb at Stone Veneer and Metal Panel Corner

Materials

Timber / Wood Masonry / CMU Stone Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco Membrane / Roofing

Elements

Walls Windows Facades / Cladding Insulation Drainage

About this detail

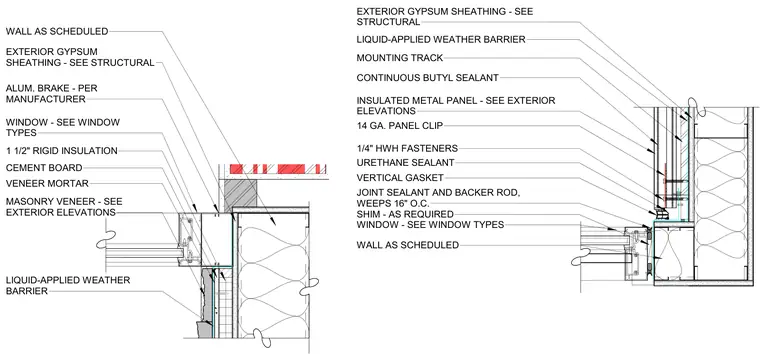

This window jamb detail at a stone veneer and insulated metal panel corner features exterior gypsum sheathing over a mounting track and a liquid-applied weather barrier. The window frame is installed with shims as required, sealed with joint sealant, backer rod, and weeps at 16 inches on center, alongside a vertical gasket and urethane sealant. On one side, a masonry veneer is adhered over veneer mortar, cement board, and one-and-a-half-inch rigid insulation, finished with a custom aluminum brake per the manufacturer. On the opposing side, insulated metal panels are secured using fourteen-gauge panel clips and quarter-inch hex washer head fasteners, with continuous butyl sealant.
