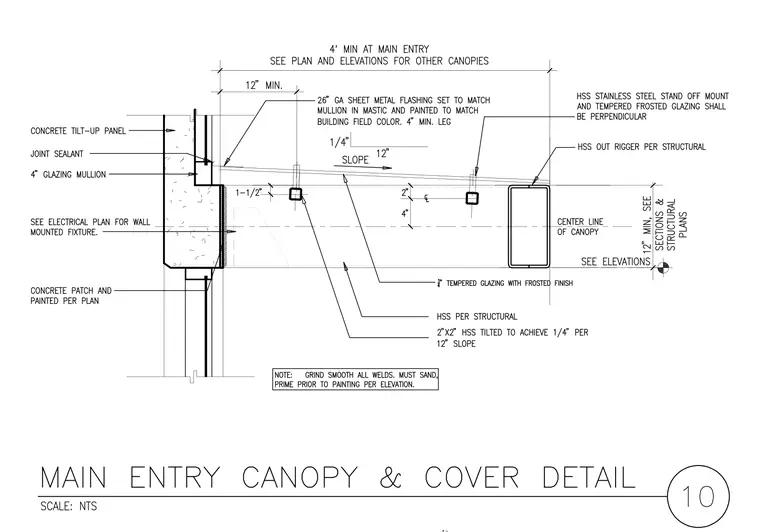

A hollow structural section outrigger connects to a concrete tilt-up panel with joint sealant and twenty-six gauge sheet metal flashing set in mastic. Two-by-two inch hollow structural sections are tilted to achieve a quarter-inch per twelve-inch slope supporting a three-eighths-inch tempered glazing panel with a frosted finish. A stainless steel stand-off mount secures the glazing perpendicular to the outrigger. A wall-mounted fixture is located below the canopy per electrical plans. All welds are ground smooth, sanded, and primed prior to painting.
