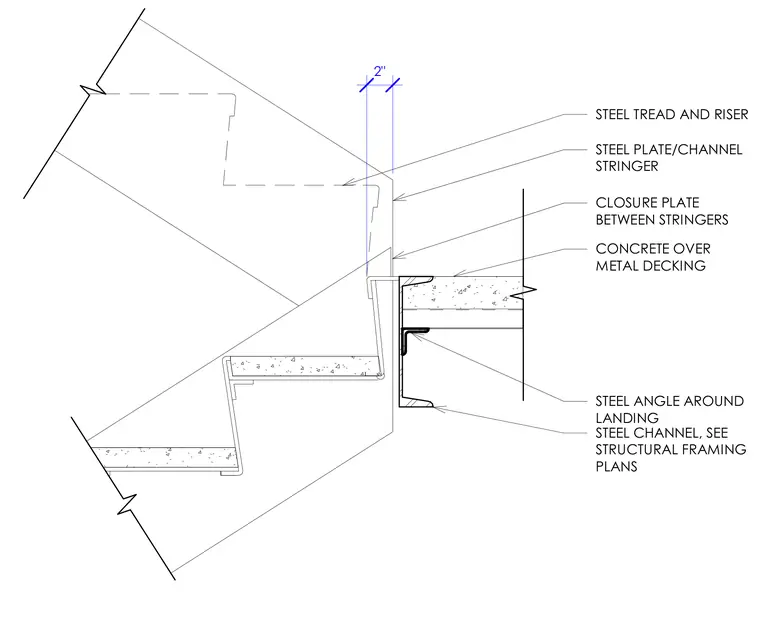

A metal stair assembly junctions with a concrete landing over metal decking. The stair stringer consists of a steel plate or channel framing past a closure plate between stringers. A steel angle frames around the concrete landing and bears against a steel channel sized per structural framing plans. Steel treads and risers tie into the stringer assembly with a two-inch clearance gap maintained between the stair carriage and the landing edge.
CONCRETE OVER METAL DECKING STEEL ANGLE AROUND LANDING STEEL CHANNEL, SEE STRUCTURAL FRAMING PLANS STEEL TREAD AND RISER STEEL PLATE/CHANNEL STRINGER CLOSURE PLATE BETWEEN STRINGERS 2"
