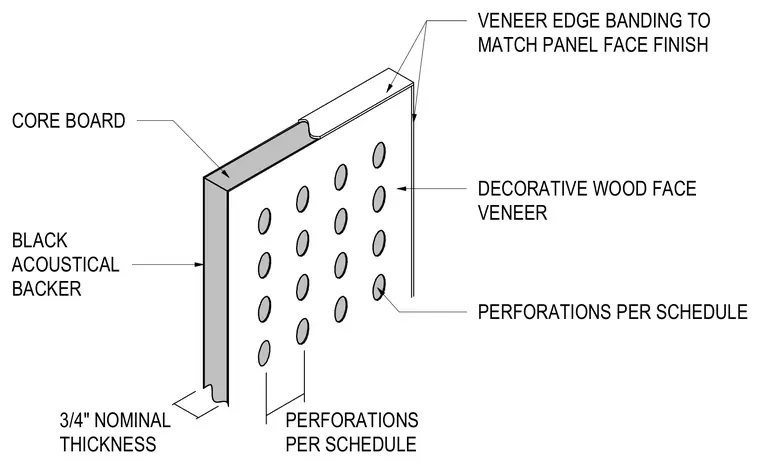

An architectural wood wall panel assembly features a three-quarter-inch nominal thickness core board faced with a decorative wood veneer and backed with a black acoustical backer. The face veneer includes scheduled perforations for sound absorption. Exposed edges are finished with veneer edge banding matching the panel face finish.
CORE BOARD BLACK ACOUSTICAL BACKER 3/4" NOMINAL THICKNESS VENEER EDGE BANDING TO MATCH PANEL FACE FINISH DECORATIVE WOOD FACE VENEER PERFORATIONS PER SCHEDULE PERFORATIONS PER SCHEDULE
