Architectural · A-37F2K

Stainless Steel Angle Trim at Curtain Wall and Roller Shade Head

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood

Elements

Beams Walls Curtain Walls Ceilings Anchors / Embeds

Connections

HSS Connection Welded Connection

About this detail

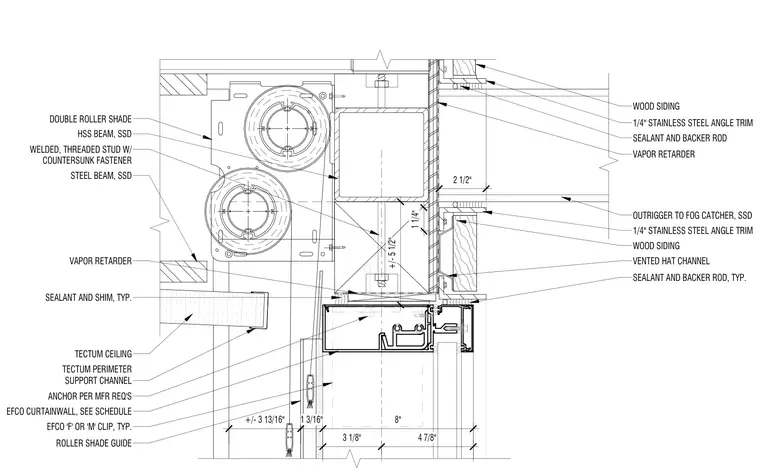

Stainless steel angle trim interfaces with an EFCO curtain wall head, wood siding, and a double roller shade pocket. The assembly is supported by hollow structural section beams and steel framing members secured with welded threaded studs and countersunk fasteners. A vented hat channel provides backing for the wood siding, while sealant and backer rods seal the perimeter joints. A Tectum ceiling system ties into the perimeter support channel with anchors installed per the manufacturer's requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
