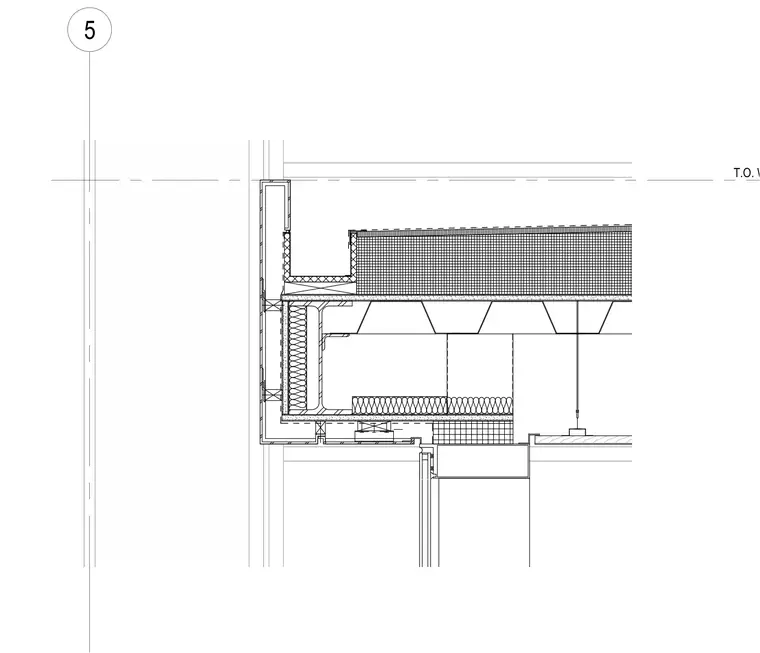

A vestibule roof edge section shows a gutter assembly bearing on structural steel framing with parapet wall construction above and a suspended ceiling below. The roof deck is supported by steel beams insulated at the perimeter. Exterior finishes wrap the parapet and tie into the vestibule entrance head below.
T.O. WALKWAY 5
