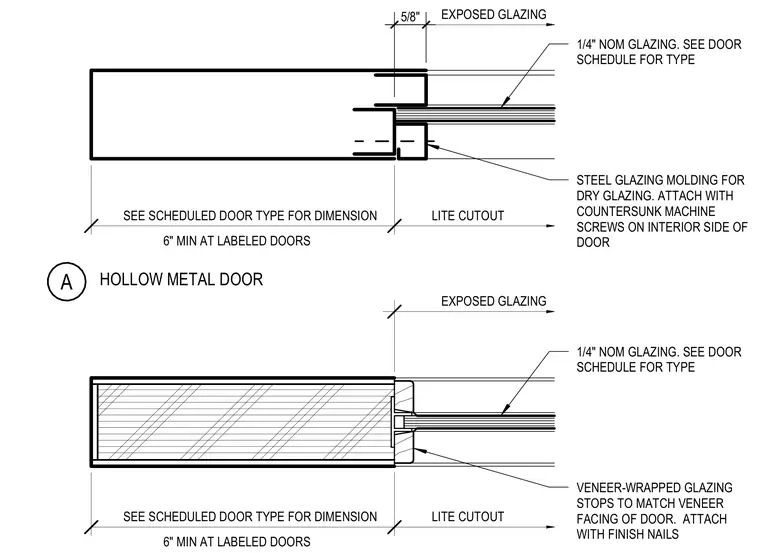

These details show vision lite glazing assemblies for interior doors using both hollow metal and wood core construction. The glass is specified as one-quarter-inch nominal glazing with type per the door schedule. Hollow metal doors utilize steel glazing molding for dry glazing, attached with countersunk machine screws on the interior side. Wood doors use veneer-wrapped glazing stops matching the door face and attached with finish nails. A six-inch minimum dimension is maintained for lite cutouts at labeled fire-rated doors.
HOLLOW METAL DOOR A 5/8" 1/4" NOM GLAZING. SEE DOOR SCHEDULE FOR TYPE STEEL GLAZING MOLDING FOR DRY GLAZING. ATTACH WITH COUNTERSUNK MACHINE SCREWS ON INTERIOR SIDE OF DOOR VENEER-WRAPPED GLAZING STOPS TO MATCH VENEER FACING OF DOOR. ATTACH WITH FINISH NAILS 1/4" NOM GLAZING. SEE DOOR SCHEDULE FOR TYPE EXPOSED GLAZING LITE CUTOUT SEE SCHEDULED DOOR TYPE FOR DIMENSION 6" MIN AT LABELED DOORS LITE CUTOUT SEE SCHEDULED DOOR TYPE FOR DIMENSION 6" MIN AT LABELED DOORS EXPOSED GLAZING
