Modular Wall Panel and Floor Assembly Sections

Materials

Elements

Walls Doors Roofs Floors / Slabs Drainage

About this detail

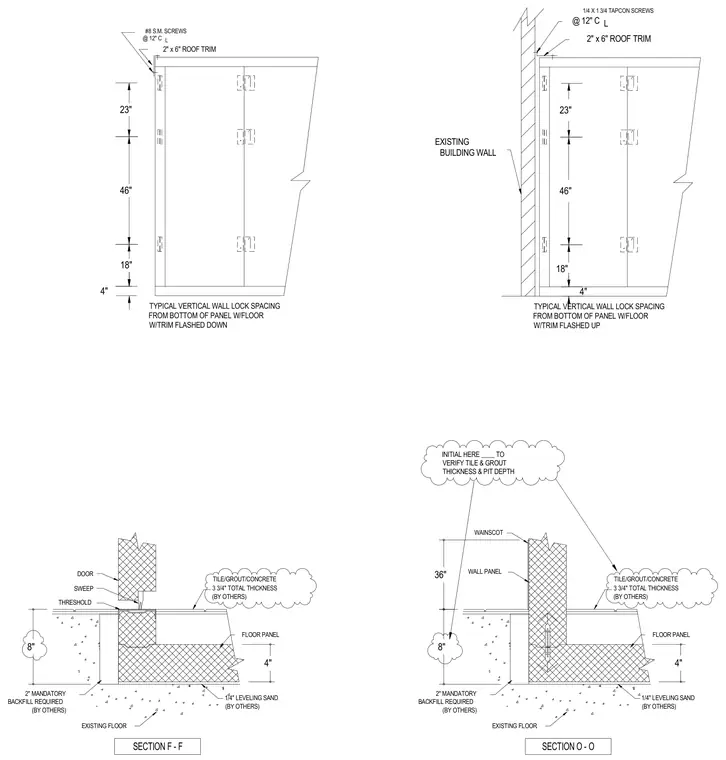

Multiple wall and floor transition sections for modular panel installations against an existing building wall. The roof assembly details a 2" x 6" roof trim secured with #8 sheet metal screws or 1/4" x 1-3/4" Tapcon screws spaced at 12" on center, with flashing oriented either upward or downward. Vertical wall lock spacings are dimensioned from the bottom of the panel with specific height intervals of 4", 18", 46", and 23". The floor transitions show a wainscot and wall panel assembly meeting an existing floor, door threshold sweep, and a total 3-3/4" thickness of tile, grout, and concrete over 1/4" of leveling sand and 2" of mandatory backfill by others.
