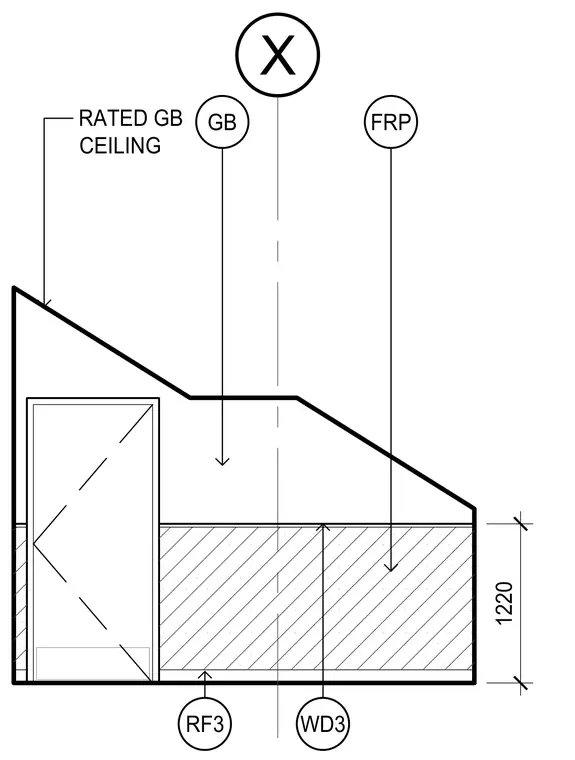

An interior partition features a lower wainscot clad in fiber-reinforced plastic extending 1220 millimeters above the base, finished with material designation WD3 and floor finish RF3. The upper wall zone consists of gypsum board with fire-resistance rating GB, terminating at a rated gypsum board ceiling above. A door opening is integrated into the assembly on the left side.
