Existing utility lines including two-inch two-way piping, three-inch insulated hot water, one-and-a-half-inch steam clean rinse, and four-inch three-way low pressure lines are routed along walls with designated appurtenances to be protected in place. A hose bib with coiled hose is mounted centrally among the vertical and horizontal piping runs. Supports are designated for modification after the new infill slab is placed.

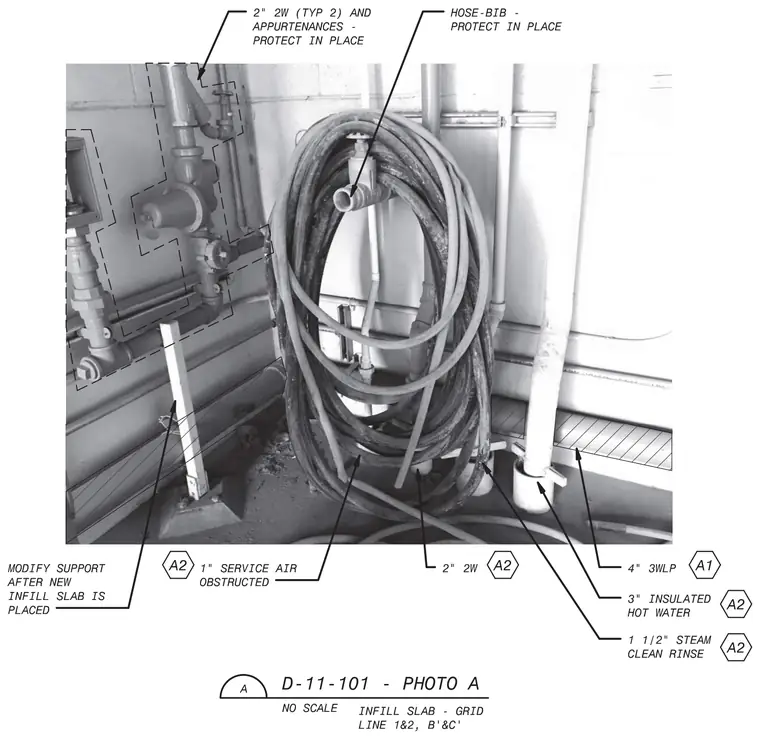

2" 2W (TYP 2) AND APPURTENANCES - PROTECT IN PLACE HOSE-BIB - PROTECT IN PLACE r Y1 \ - t® \ \ | \ J \ i \ / i \ \ A //, \ \ r \ \ ■ 3 \ 1 jam 7 r \ Pk -0 \ \ I L \ * 1 ( < U & ‘U \ 4 jgNj A Vi .V7 LX sZ i % - 7 : : - _ <2> MODIFY SUPPORT AFTER NEW INFILL SLAB IS PLACED -------------- 1 " SERVICE AIR OBSTRUCTED ----- 4" 3WLP 2" 2W 3" INSULATED HOT WATER 1 1/2 " STEAM CLEAN RINSE D-11-101 - PHOTO A NO SCALE INFILL SLAB - GRID LINE 1&2, B'&C'
