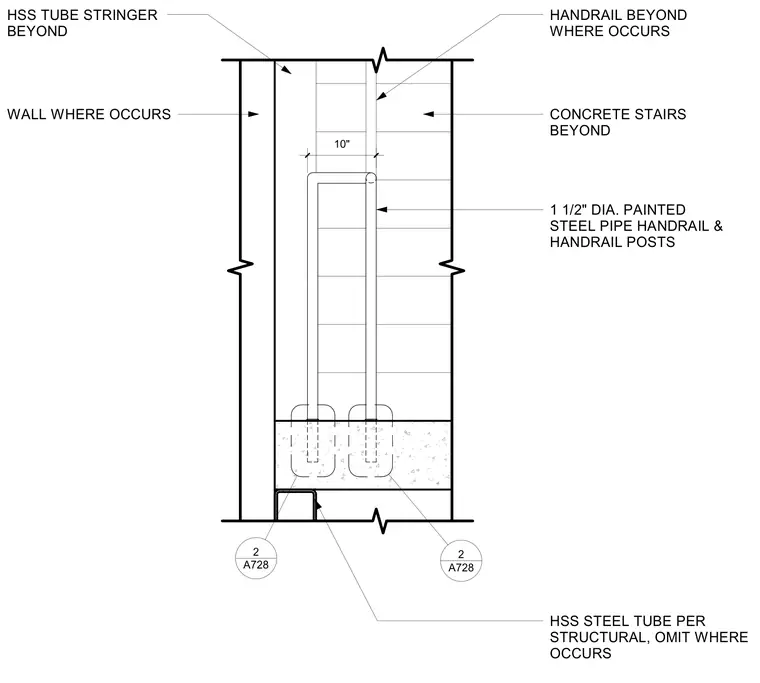

A one-and-one-half-inch diameter painted steel pipe handrail and handrail posts terminate at a concrete stair landing shown in end view. The stair assembly features hollow structural section steel tube stringers sized per structural drawings, omitted where walls occur. Concrete stairs and walls are located beyond and adjacent to the handrail mounting.
10" A728 2 HSS TUBE STRINGER BEYOND HANDRAIL BEYOND WHERE OCCURS WALL WHERE OCCURS CONCRETE STAIRS BEYOND 1 1/2" DIA. PAINTED STEEL PIPE HANDRAIL & HANDRAIL POSTS A728 2 HSS STEEL TUBE PER STRUCTURAL, OMIT WHERE OCCURS
