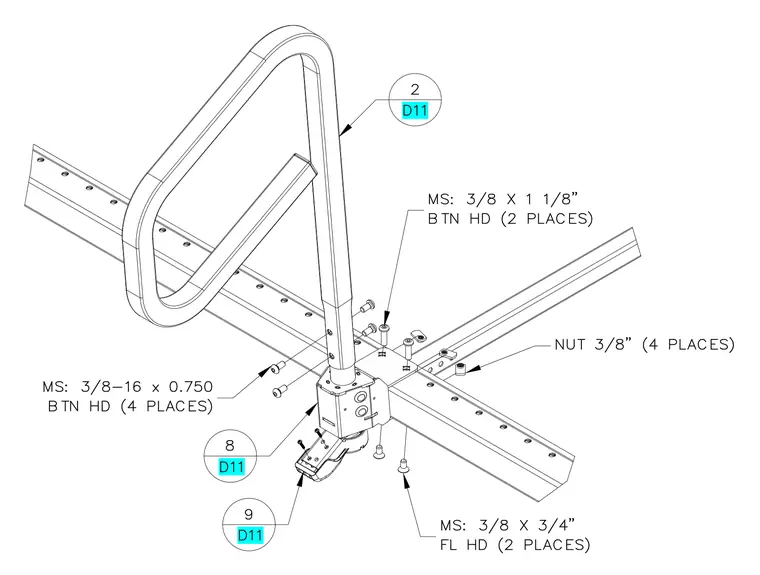

This rotating aisle rail assembly features a vertical tubular rail secured with four 3/8-16 x 0.750 inch button head machine screws, two 3/8 x 1 1/8 inch button head machine screws, and two 3/8 x 3/4 inch flat head machine screws. Four 3/8 inch nuts secure the base connection. The components intersect at a pivoting base joint allowing rotational movement of the handrail element.
9 D11 8 D11 MS: 3/8-16 x 0.750 BTN HD (4 PLACES) MS: 3/8 X 1 1/8" BTN HD (2 PLACES) NUT 3/8" (4 PLACES) MS: 3/8 X 3/4" FL HD (2 PLACES) 2 D11 6 6 6 6 6 6 6 6 % % 0 6 0 0 6 6 6 6 o
