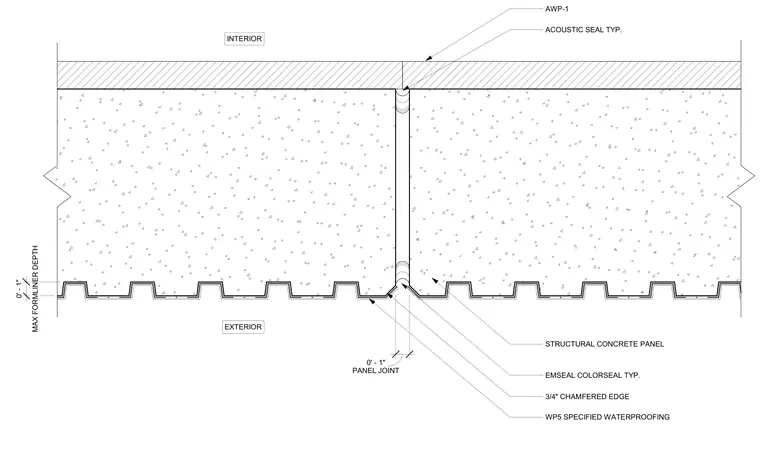

Two structural concrete panels meet at a vertical joint featuring a three-quarter inch chamfered edge on the exterior formliner face. The joint is sealed on the exterior side with an Emseal Colorseal and backed by specified waterproofing membrane WP5. The interior side of the joint is finished with a typical acoustic seal and AWP-1 waterproofing.
INTERIOR EXTERIOR PANEL JOINT 0' - 1" MAX FORMLINER DEPTH 0' - 1" 3/4" CHAMFERED EDGE STRUCTURAL CONCRETE PANEL EMSEAL COLORSEAL TYP. ACOUSTIC SEAL TYP. WP5 SPECIFIED WATERPROOFING AWP-1
