A structural steel beam frames into a column using a three-bolt shear plate connection, supplemented by top and bottom three-eighths-inch plates welded with quarter-inch welds on three sides typically. Three three-quarter-inch diameter A325 bolts secure the connection. The beam and column sizes are sized per plan.

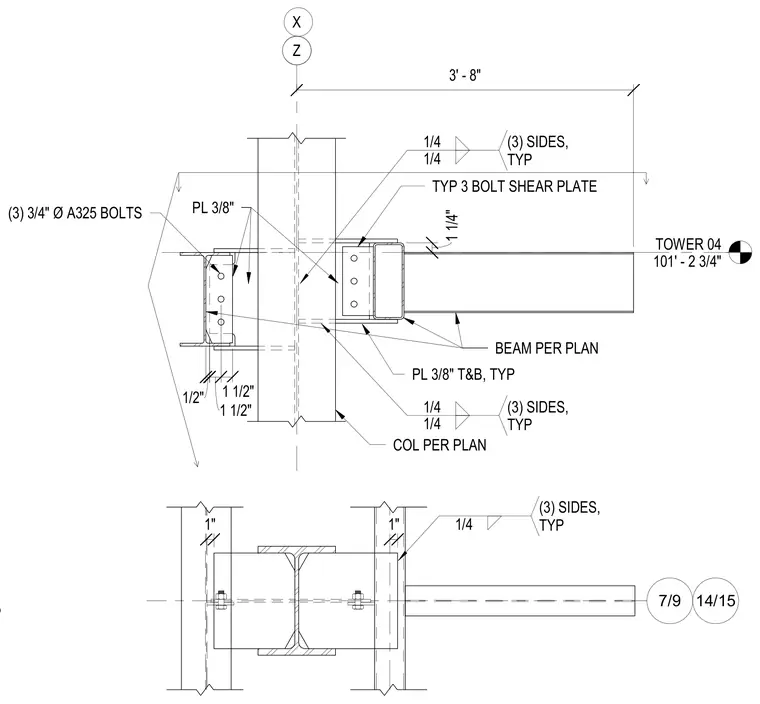

T&B, TYP Z TOWER 04 101' - 2 3/4" 1 1/4" COL PER PLAN BEAM PER PLAN 1" 1" 1/4 (3) SIDES, TYP 1 1/2" 1 1/2" PL 3/8" PL 3/8" T&B, TYP 1/4 1/4 (3) SIDES, TYP 1/4 1/4 (3) SIDES, TYP 3' - 8" 7/9 14/15 X 1/2" (3) 3/4" Ø A325 BOLTS TYP 3 BOLT SHEAR PLATE
