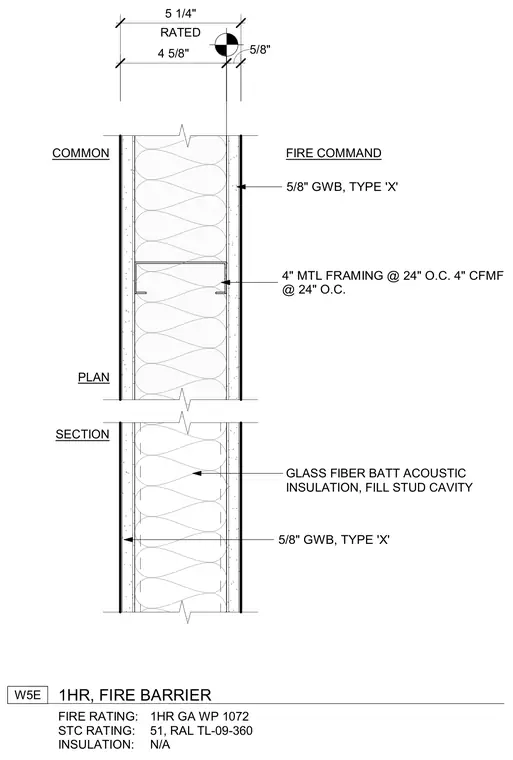

This one-hour fire barrier partition utilizes four-inch cold-formed metal framing spaced at twenty-four inches on center. The stud cavity is filled with glass fiber batt acoustic insulation. Each side of the partition is finished with five-eighths-inch Type X gypsum wallboard. The total assembly thickness measures five and one-quarter inches.
5/8" GWB, TYPE 'X' 4" MTL FRAMING @ 24" O.C. 4" CFMF @ 24" O.C. GLASS FIBER BATT ACOUSTIC INSULATION, FILL STUD CAVITY PLAN SECTION FIRE COMMAND COMMON 5/8" GWB, TYPE 'X' 4 5/8" 5/8" RATED 5 1/4" FIRE RATING: STC RATING: INSULATION: W5E 1HR, FIRE BARRIER 1HR GA WP 1072 51, RAL TL-09-360 N/A
