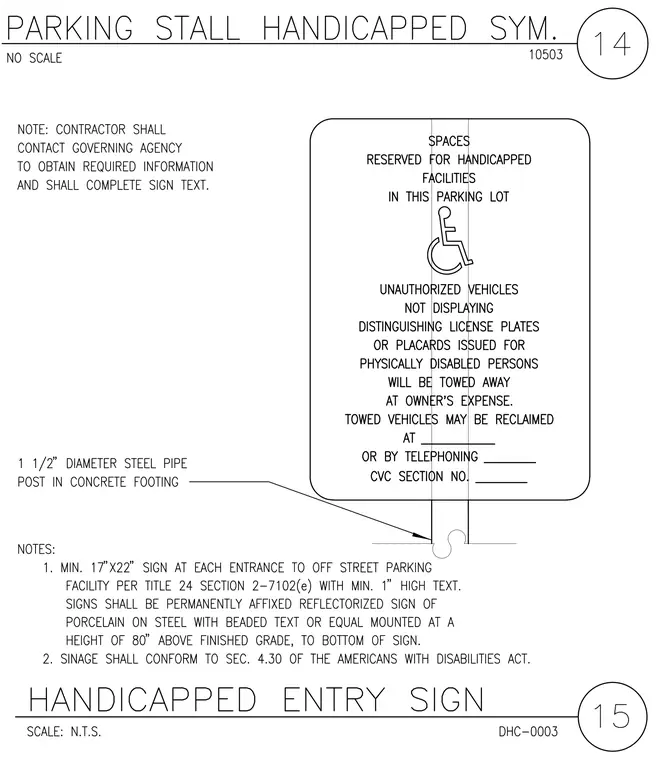

An accessibility sign assembly features a 1 1/2-inch diameter steel pipe post anchored in a concrete footing and supporting a reserved parking sign. The sign panel displays required statutory messaging regarding unauthorized vehicles and towing, with blank lines for reclaiming information and CVC section numbers per governing agency requirements. Notes specify a minimum 17-inch by 22-inch porcelain on steel reflectorized sign with beaded text, mounted at 80 inches above finished grade to the bottom of the sign. All signage must conform to Section 4.30 of the Americans with Disabilities Act and Title 24 Section 2-7102(e).
