Architectural · A-36CG8

Steel Stair Guard Post Attachment to Stringer

Materials

Elements

About this detail

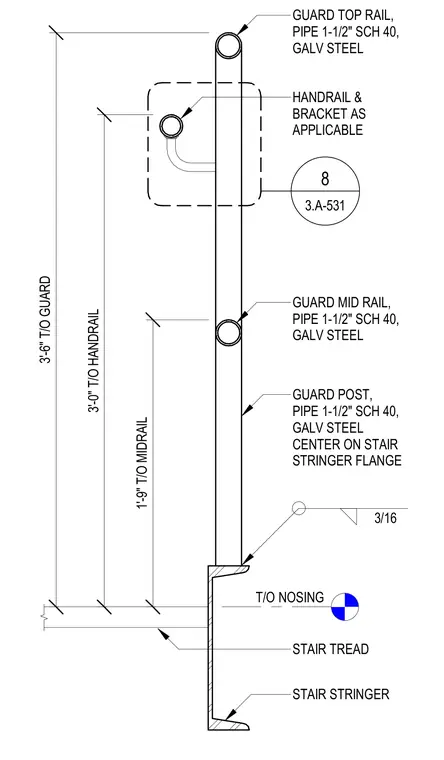

A galvanized steel guard post mounts directly to the flange of a steel stair stringer using a three-sixteenths inch fillet weld centered on the stringer flange. The assembly features a one and one-half inch schedule forty galvanized steel top rail and mid-rail, with a one and one-half inch schedule forty galvanized steel guard post extending upward. The top of the guard is positioned at three feet six inches above the top of the nosing, while the top of the handrail sits at three feet zero inches with a bracket attached as applicable. A mid-rail is located one foot nine inches above the reference baseline.
