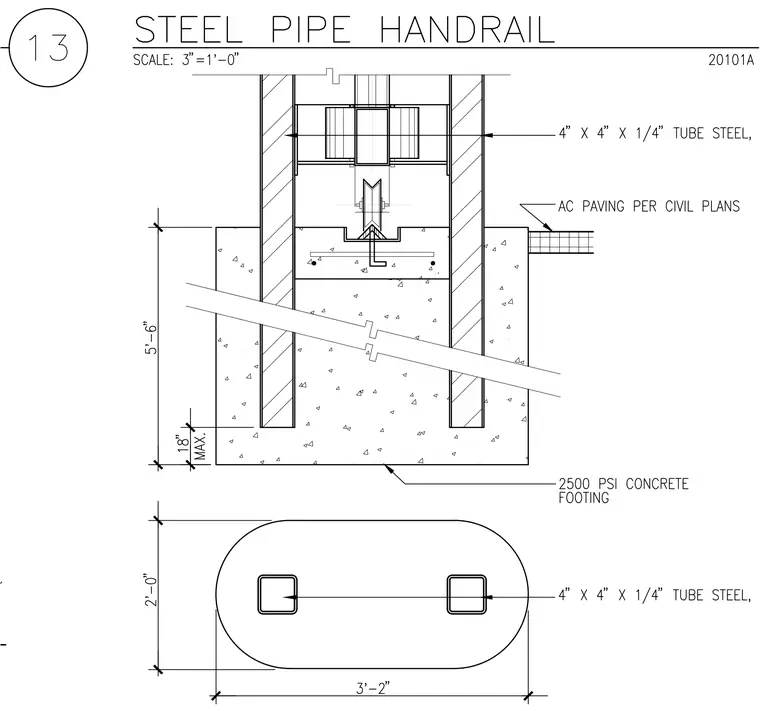

Two vertical 4-inch by 4-inch by 1/4-inch tube steel posts extend down into a 2500 PSI concrete footing measuring 5 feet 6 inches deep with an 18-inch maximum dimension, surrounded by asphalt concrete paving per civil plans. The footing plan layout measures 3 feet 2 inches by 2 feet, embedding the structural steel tube posts symmetrically. The detail includes overhead rolling gate hardware nested between the dual posts.
