Architectural · A-369GQ

2 Hr, Stair-To-Unit Demising Wall

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Stairs Bracing Insulation

Connections

Bracing Connection

About this detail

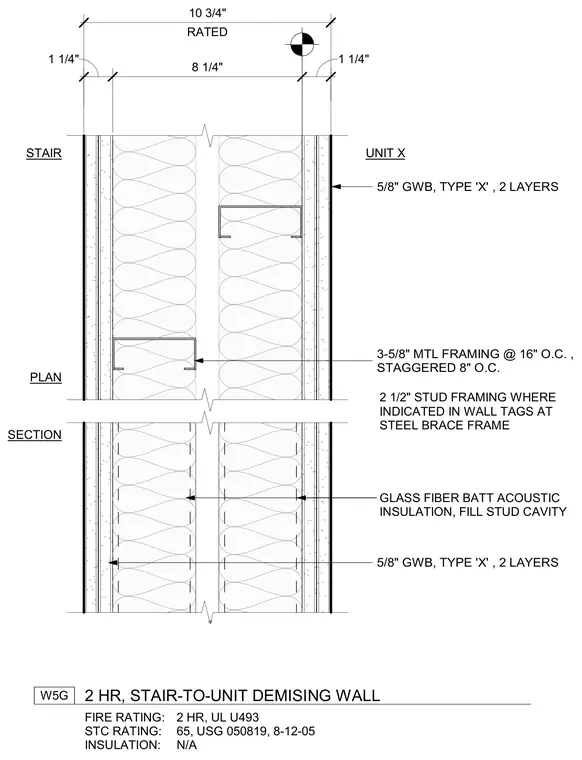

This wall assembly features 3-5/8 inch metal framing spaced at 16 inches on center, arranged in a staggered configuration at 8 inches on center. The overall wall thickness measures 10-3/4 inches, including double layers of 5/8 inch Type X gypsum wallboard on both the stair and unit sides. Glass fiber batt acoustic insulation fills the stud cavities. Where indicated by wall tags at steel brace frames, narrower 2-1/2 inch stud framing is utilized.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
