A metal stud partition terminates at a rated concrete and metal deck floor slab with a top track secured by minimum one-eighth-inch powder-actuated fasteners at twenty-four inches on center with one-and-one-quarter-inch minimum embedment. Web stiffeners are added as required to meet limiting height requirements, alongside metal U-channel lateral bracing and metal clip angles. Additional layers of gypsum wallboard and sound attenuation fire blanket are included per partition type.

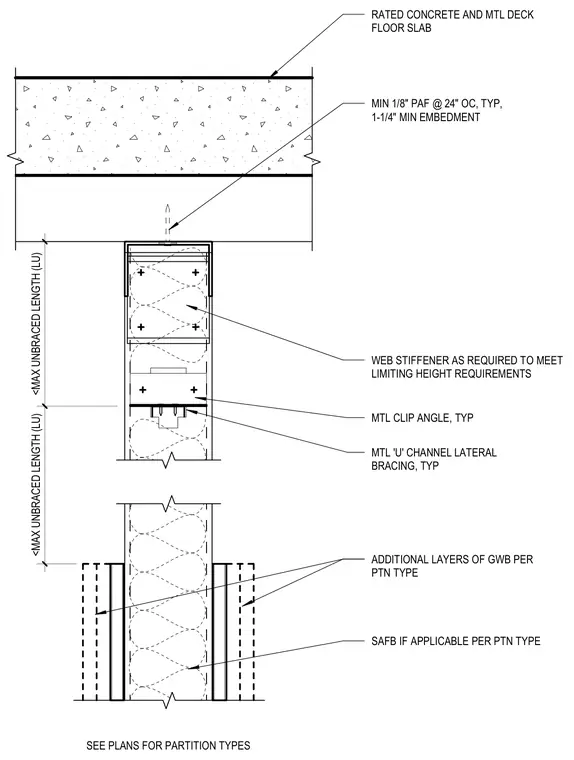

RATED CONCRETE AND MTL DECK FLOOR SLAB MIN 1/8" PAF @ 24" OC, TYP, 1-1/4" MIN EMBEDMENT SEE PLANS FOR PARTITION TYPES ADDITIONAL LAYERS OF GWB PER PTN TYPE SAFB IF APPLICABLE PER PTN TYPE <MAX UNBRACED LENGTH (LU) <MAX UNBRACED LENGTH (LU) WEB STIFFENER AS REQUIRED TO MEET LIMITING HEIGHT REQUIREMENTS MTL 'U' CHANNEL LATERAL BRACING, TYP MTL CLIP ANGLE, TYP
