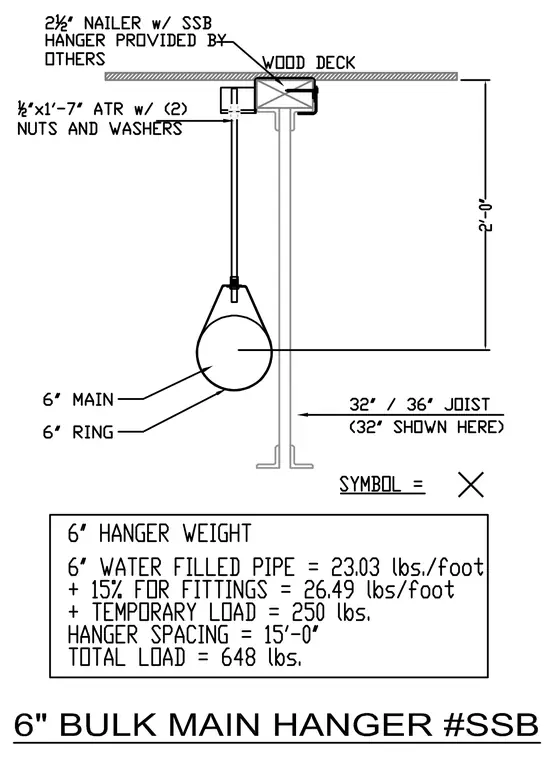

A six-inch main pipe and ring assembly is suspended two feet below a wood deck by a half-inch by one-foot seven-inch all-threaded rod with two nuts and washers. The threaded rod connects to a two-and-a-half-inch nailer with an SSB hanger provided by others. The adjacent joist spacing is thirty-two or thirty-six inches, with thirty-two inches shown here. A table details the hanger weight parameters, including a six-inch water-filled pipe load of twenty-three point zero three pounds per foot, fifteen percent for fittings yielding twenty-six point four nine pounds per foot, a temporary load of two hundred fifty pounds, and a hanger spacing of fifteen feet for a total load of six hundred forty-eight pounds.
