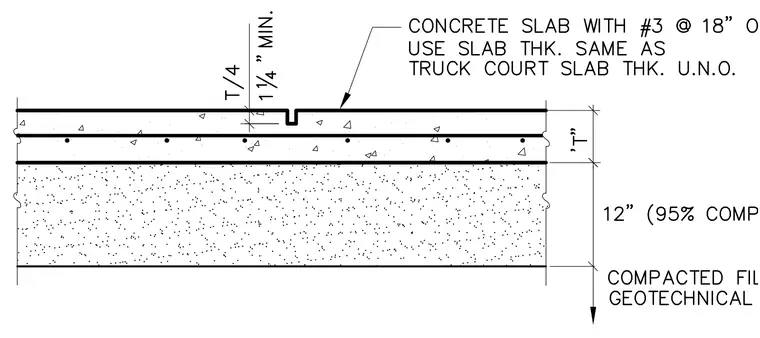

A concrete slab of thickness T is reinforced with number three bars spaced at eighteen inches on center. The slab thickness matches the truck court slab thickness unless noted otherwise. A sawcut control joint extends to a depth of T over four or one and one-quarter inches minimum. The slab bears on a twelve-inch compacted fill layer per geotechnical requirements.
