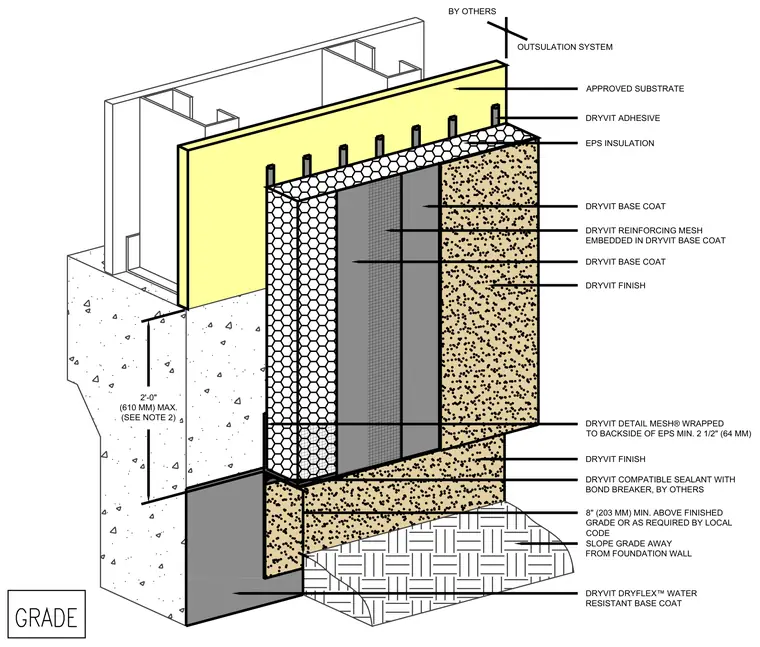

An approved substrate receives an exterior insulation and finish system applied over a layer of adhesive and a minimum two and one-half inch expanded polystyrene insulation. A water-resistant base coat and reinforcing mesh wrap the backside of the insulation board before receiving a standard base coat and finish coat. A compatible sealant with a bond breaker is placed at the termination joint above grade. The foundation wall features a water-resistant base coat extending down to meet the sloped grade below.
2'-0" (610 MM) MAX. (SEE NOTE 2) DRYVIT ADHESIVE APPROVED SUBSTRATE BY OTHERS OUTSULATION SYSTEM SLOPE GRADE AWAY FROM FOUNDATION WALL DRYVIT DETAIL MESH® WRAPPED TO BACKSIDE OF EPS MIN. 2 1/2" (64 MM) EPS INSULATION DRYVIT FINISH DRYVIT BASE COAT DRYVIT REINFORCING MESH EMBEDDED IN DRYVIT BASE COAT DRYVIT BASE COAT DRYVIT DRYFLEX™ WATER RESISTANT BASE COAT DRYVIT FINISH DRYVIT COMPATIBLE SEALANT WITH BOND BREAKER, BY OTHERS 8" (203 MM) MIN. ABOVE FINISHED GRADE OR AS REQUIRED BY LOCAL CODE
