Architectural · A-35DT8

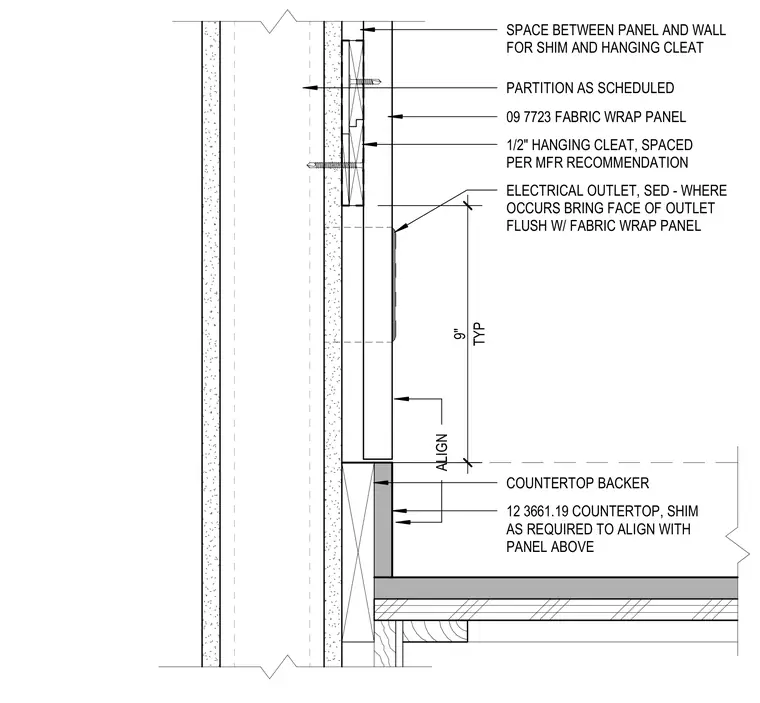

Acoustic Fabric Panel and Countertop Transition Section

Elements

About this detail

An acoustic fabric-wrapped wall panel is mounted to a partition using a one-half-inch hanging cleat spaced per manufacturer recommendations, with a gap left between the panel and wall for shims and the cleat. Below the panel, a countertop backer and countertop are shimmed as required to align flush with the panel face above. An electrical outlet is positioned where applicable, with its face brought flush to the fabric-wrapped panel.
