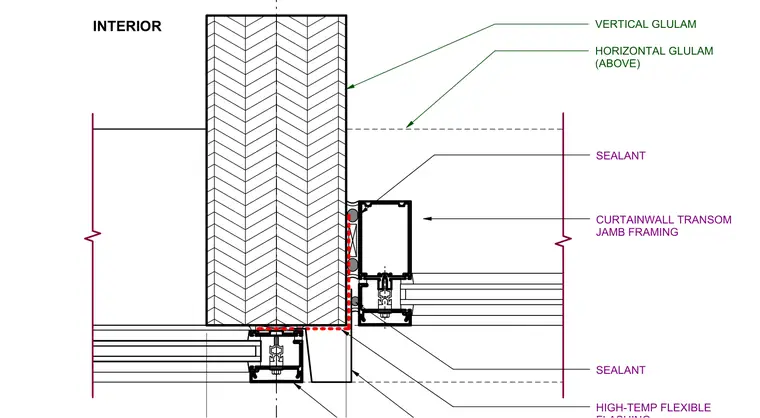

A curtainwall transom and jamb framing assembly intersects a vertical glulam member backed by a horizontal glulam above. High-temp flexible flashing bridges the joint between the timber structure and the aluminum framing profile. Sealant is applied continuously along the interface to maintain weather tightness at the transition. Glazing units are integrated directly into the curtainwall framing system.
VERTICAL GLULAM HORIZONTAL GLULAM (ABOVE) CURTAINWALL TRANSOM JAMB FRAMING SEALANT HIGH-TEMP FLEXIBLE SEALANT INTERIOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
