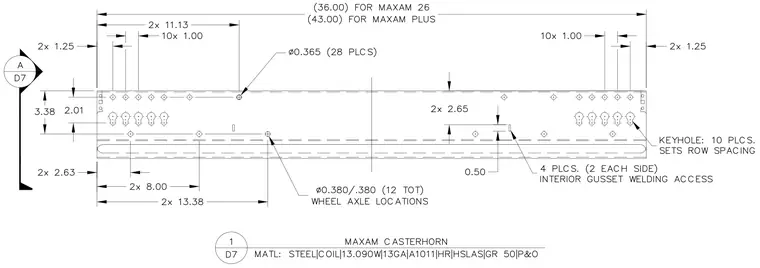

A thirteen-gauge hot-rolled high-strength low-alloy structural steel coil plate is configured as a Maxam casterhorn. The component measures thirty-six inches long for Maxam 26 and forty-three inches long for Maxam Plus variants. Dimensions and locations are provided for twenty-eight 0.365-inch diameter holes, twelve wheel axle locations, ten keyholes that set row spacing, and four interior gusset welding access slots.
(36.00) FOR MAXAM 26 (43.00) FOR MAXAM PLUS 2x 1.25 10x 1.00 2x 11.13 2x 2.63 2x 8.00 2x 13.38 ∅0.365 (28 PLCS) ∅0.380/.380 (12 TOT) WHEEL AXLE LOCATIONS 2x 2.65 0.50 3.38 2.01 A D7 4 PLCS. (2 EACH SIDE) INTERIOR GUSSET WELDING ACCESS KEYHOLE: 10 PLCS. SETS ROW SPACING 2x 1.25 10x 1.00 MAXAM CASTERHORN 1 D7 MATL: STEEL|COIL|13.090W|13GA|A1011|HR|HSLAS|GR 50|P&O © $ -- -- O 3 a 00090 1 J
