Architectural · A-34XZP

Cold-Formed Metal Framing Backing Track Connection

Materials

About this detail

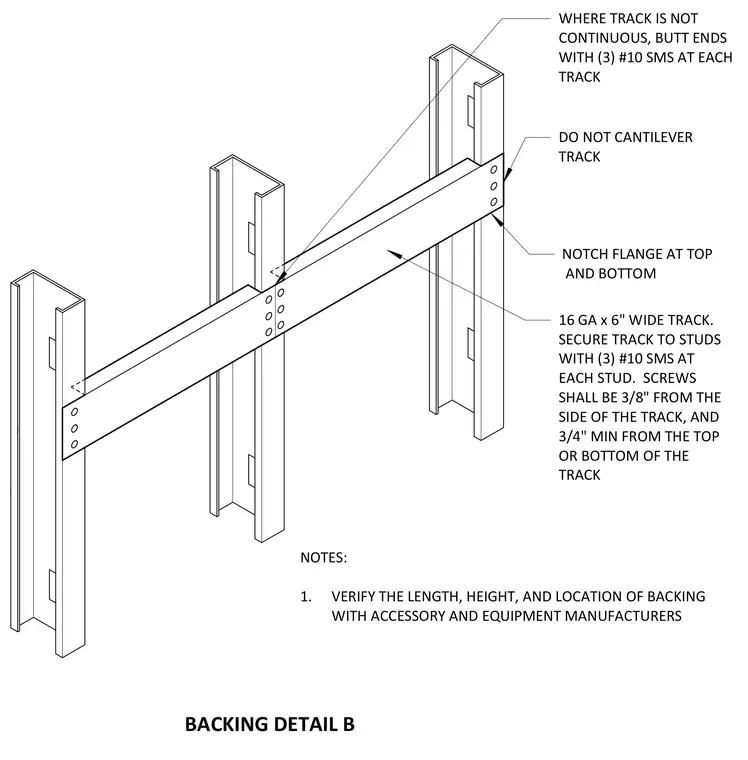

Sixteen-gauge by six-inch wide metal track used as backing across vertical steel studs. Where the track is not continuous, the ends butt together and are secured with three number ten sheet metal screws at each track splice. The backing track flanges are notched at the top and bottom to clear stud webs, and the track is left un-cantilevered beyond supports. The track is fastened to each stud using three number ten sheet metal screws positioned three-eighths of an inch from the side and a minimum of three-quarters of an inch from the top or bottom of the track. Field verification of backing length, height, and location is required with accessory and equipment manufacturers.
