Hazard warning markings identify wall-mounted obstacles at a minimum height of six feet six inches above the finish floor. Optional floor-mounted demarcation lines run adjacent to vertical surfaces, maintaining a distance of one inch minimum to two inches maximum from the obstruction as close as practical. The warning stripes highlight protruding building elements for pedestrian safety and accessibility compliance.

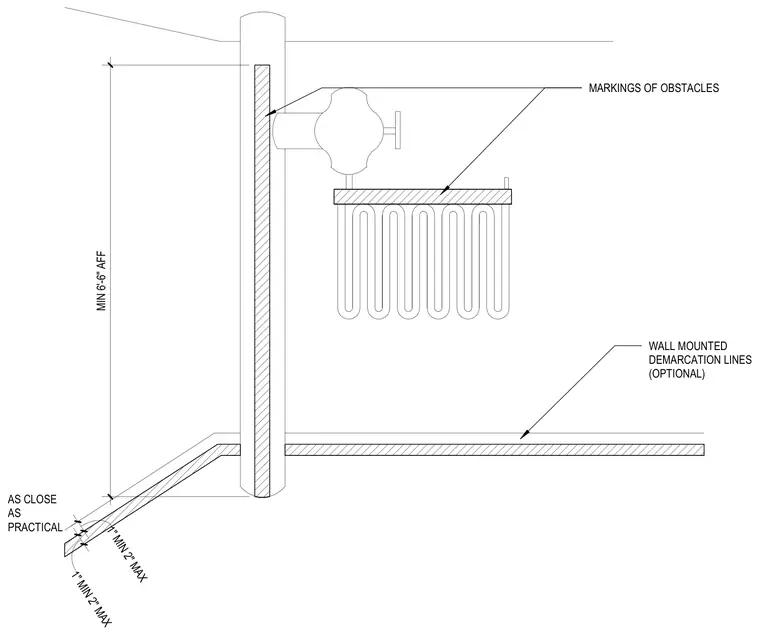

MIN 6'-6" AFF MARKINGS OF OBSTACLES WALL MOUNTED DEMARCATION LINES (OPTIONAL) 1" MIN 2" MAX AS CLOSE AS PRACTICAL 1" MIN 2" MAX
