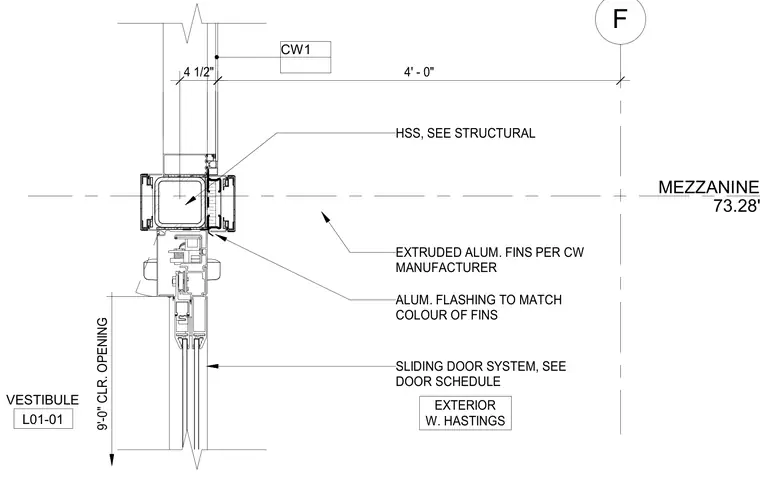

The curtain wall head assembly at an entryway features a hollow structural section member supported per structural drawings. Extruded aluminum fins match the curtain wall manufacturer specifications, complemented by aluminum flashing finished to match the color of the fins. A sliding door system is integrated below with a 9'-0" clear opening height.
F MEZZANINE 73.28' EXTERIOR W. HASTINGS VESTIBULE L01-01 4' - 0" EXTRUDED ALUM. FINS PER CW MANUFACTURER HSS, SEE STRUCTURAL 4 1/2" 9'-0" CLR. OPENING ALUM. FLASHING TO MATCH COLOUR OF FINS SLIDING DOOR SYSTEM, SEE DOOR SCHEDULE CW1
