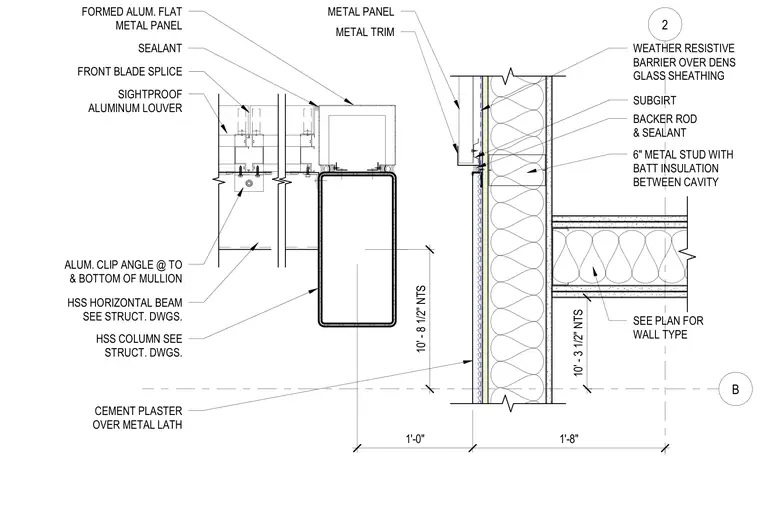

This exterior corner wall detail at a penthouse level features a hollow structural section column and horizontal steel beam supporting a sightproof aluminum louver with a front blade splice and aluminum clip angles at the top and bottom of the mullion. The exterior cladding transitions to a formed aluminum flat metal panel with metal trim. The backup wall assembly consists of a weather resistive barrier over dens glass exterior sheathing, attached via subgirts to 6-inch metal studs with batt insulation in the cavity. A backer rod and sealant joint seals the junction, and the exterior surface is finished with cement plaster over metal lath.
2 B 10' - 3 1/2" NTS 10' - 8 1/2" NTS 1'-0" 1'-8" HSS COLUMN SEE STRUCT. DWGS. HSS HORIZONTAL BEAM SEE STRUCT. DWGS. ALUM. CLIP ANGLE @ TO & BOTTOM OF MULLION FRONT BLADE SPLICE SIGHTPROOF ALUMINUM LOUVER SEALANT FORMED ALUM. FLAT METAL PANEL METAL PANEL METAL TRIM WEATHER RESISTIVE BARRIER OVER DENS GLASS SHEATHING SUBGIRT BACKER ROD & SEALANT 6" METAL STUD WITH BATT INSULATION BETWEEN CAVITY CEMENT PLASTER OVER METAL LATH SEE PLAN FOR WALL TYPE
