Architectural · A-34AK7

Base Cabinet at Trash Chute

Materials

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

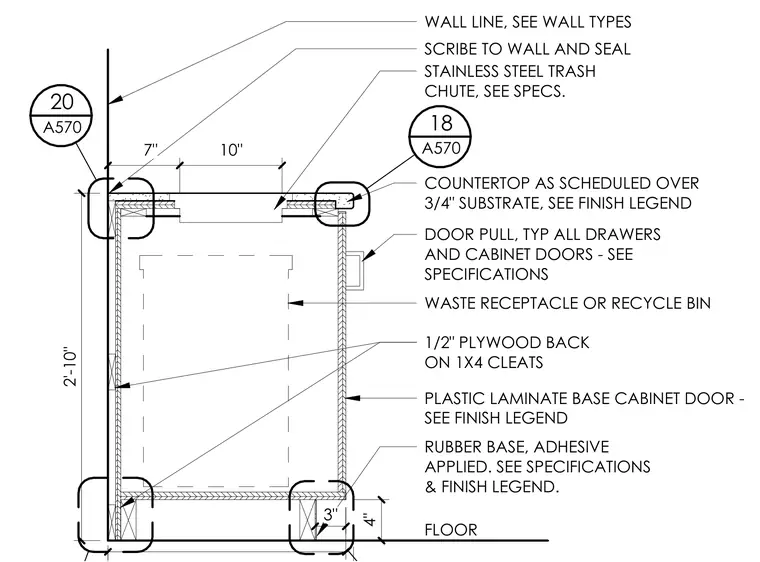

This interior millwork detail shows a base cabinet housing a waste receptacle or recycle bin beneath a stainless steel trash chute. The countertop consists of a scheduled finish over a three-quarter inch plywood substrate. Cabinet doors and drawers feature standard door pulls, with a half-inch plywood back mounted on one-by-four wood cleats. The base cabinet sits against the wall line with a scribed and sealed edge, finished at the floor with an adhesive-applied rubber base.
