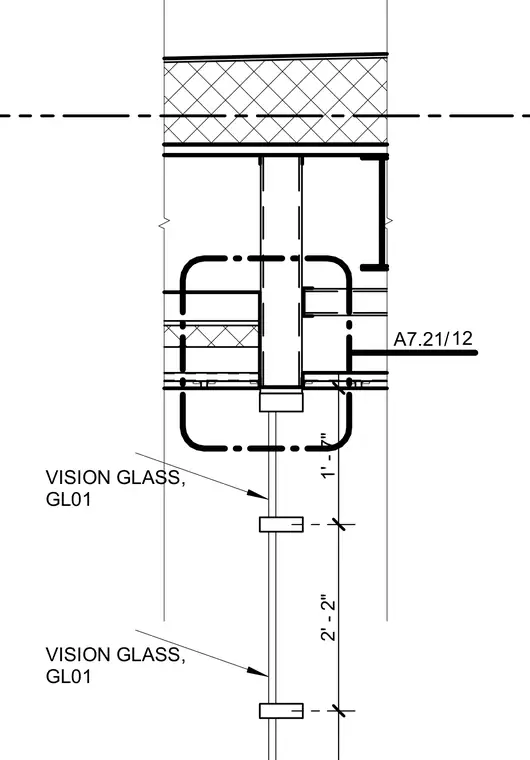

An aluminum framing head assembly anchors a glazed storefront or curtain wall system below an overhead floor or roof structure. Vision glass panels designated as GL01 install into the framing profiles with vertical dimensions measuring 1 foot 7 inches and 2 feet 2 inches between intermediate stops. The assembly integrates with adjacent interior finishes and structural slabs while providing weather-resistant sealing at the head condition.
