Architectural · A-346X6

Canopy Eave and Fascia Detail with Steel Framing

Materials

Steel Metal (misc.)Membrane / Roofing

Elements

Columns Beams Walls Roofs Parapets Canopies Ceilings Decks Insulation

Connections

HSS Connection

About this detail

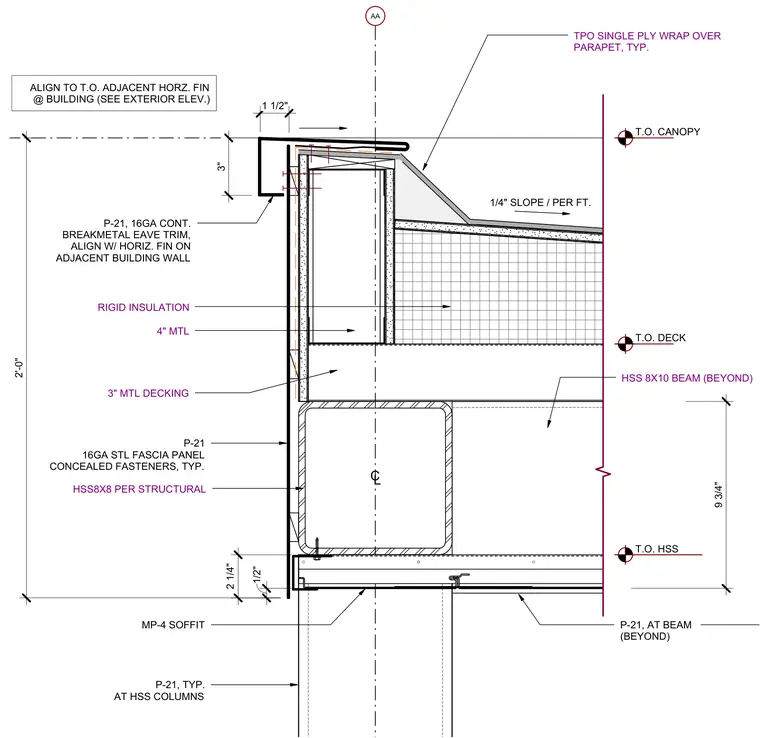

This canopy eave and fascia detail features a structural steel framing system with an 8x8 hollow structural section column and an 8x10 hollow structural section beam beyond. The roof assembly consists of 3-inch metal decking topped with rigid insulation and a TPO single-ply membrane wrapped over the parapet with a one-quarter inch per foot slope. The edge condition is finished with a continuous 16-gauge breakmetal eave trim aligned with horizontal finishes on the adjacent building wall. The fascia and soffit are clad in 16-gauge steel panels with concealed fasteners, aligned with the columns.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
