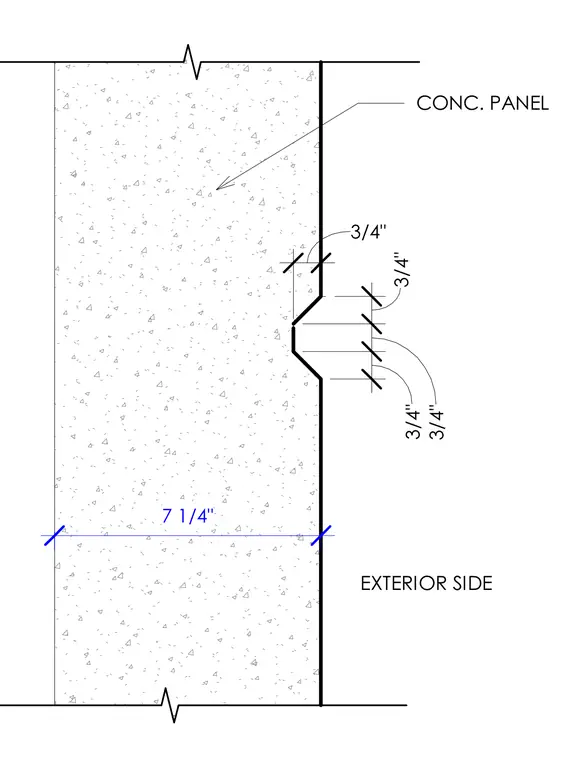

An architectural concrete wall panel features a recessed horizontal reveal on its exterior face. The concrete panel has an overall thickness of seven and one-quarter inches. The reveal profile is detailed with three-quarter-inch dimensions indicating its width and depth transitions.
EXTERIOR SIDE CONC. PANEL 3/4" 3/4" 3/4" 3/4" 7 1/4"
